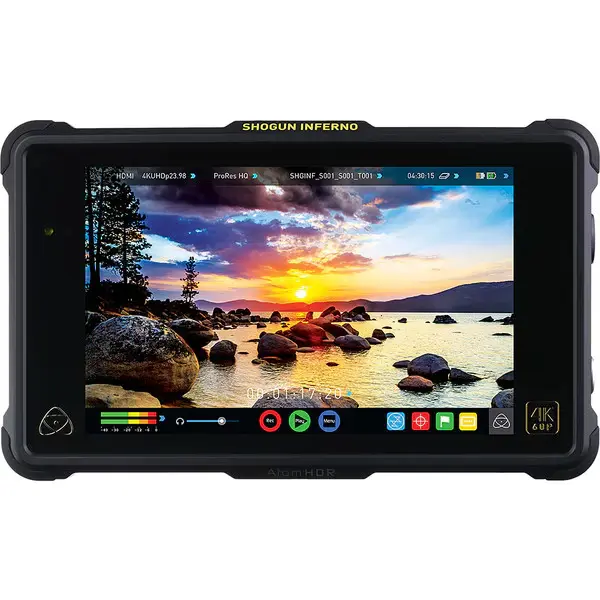

Weight Without batteries & media: 709g / 25.0oz With batteries & media: 1153g / 40.7oz Dimensions (W x H x D mm): 214 x 127 x 45mm, 8.4 x 5 x 1.8” Construction: High quality lightweight ABS Polycarbonate for durability & portability Built-in armor protection Power Operating power: 10 - 33W Compatible batteries: NP-F series and supporting accessories Input voltage (battery): 6.2V to 16.8V Battery time (based on 2 x 7.4V): - 5200mAh - up to 1.5hrs (monitor & record 4K 30p) 7800mAh - up to 2.2hrs (monitor & record 4K 30p) DC In: 1 x DC in (6.2 - 16.8V) Continuous power: Primary-secondary battery system. Change batteries without losing power Loop batteries continuously Touchscreen Size: 7.1” Resolution: 1920 x 1200 PPI: 325 Aspect ratio: 16:9 native Color Gamut: REC709 HDTV Look up table (LUT) support: 3D LUT (.cube format) Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3 Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit HDR AtomHDR: Yes Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog Supported Gamuts: Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / BT2020 / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut Bit depth: 10-bit (8+2 FRC) Brightness: 1500nit (+/- 10% @ center) HDR input (PQ/HLG)Yes / Yes HDR output (PQ/HLG): Yes / Yes Video-Input/Loop Out HDMI: 1 x HDMI (2.0) SDI: Quad link 4 x 3G SDI* or up to 12G single link SDI Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent) Video Output (Play Out) HDMI: 1 x HDMI (2.0) SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent) Supported Loop Out Formats HDMI to HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60 SDI to SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60 Video Signal Conversion HDMI to SDI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60 SDI to HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60 Onboard Processing Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown) 4K UHD downscale for HD monitoring: Yes - Loop-out and playback (Not available in RAW) Audio In/Out (48kHz PCM Audio) HDMI: 2 or 8ch 24-bit, camera dependent SDI: 12ch 48kHz 24-bit Audio: 2ch balanced XLR analog in/out, Dynamic range >90dB, Max signal level +24dBu, Max analog gain +52dB, 48V Phantom Power for Mic Remote Start/Stop HDMI: Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard SDI: SDI trigger camera selectable Other: LANC control - Slave Playback Playlist / Genlock / LTC: Yes / Yes / Yes CDNG (Recorded content): No support ProRes (Recorded content): All recorded files can playback. Playback in slow motion >= 100fps DNxHR / DNxHD (recorded content): All recorded files can playback. Playback in slow motion >= 100fps Recording Pre-roll record: Yes (HD 8s, 4K 2s) Custom timelapse: Yes Metadata tagging: Yes (10 tags available) Supported media: 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives Master caddy case: Master Caddy II (included), 75mm x 105mm x 12mm Master caddy dock: 2.5” SATA to USB 2.0/3.0 Supported applications: Supported Applications FCPX/FCP7+ / Media Composer, 5.0+ / Premiere 5.5+, EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015 XML support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools Accessories included: Shogun Inferno unit, Master Caddy II x 1, 12V-3A AC power supply, Breakout XLR cable
