Sennheiser ME 66 mic
ME 66

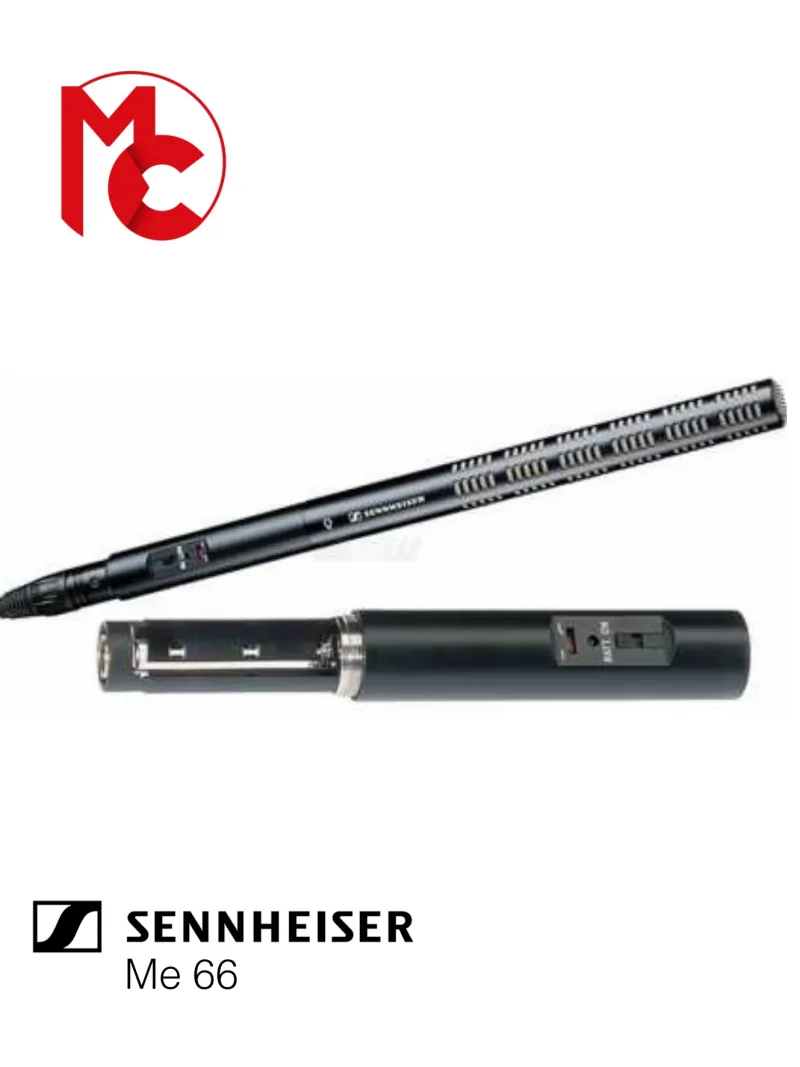

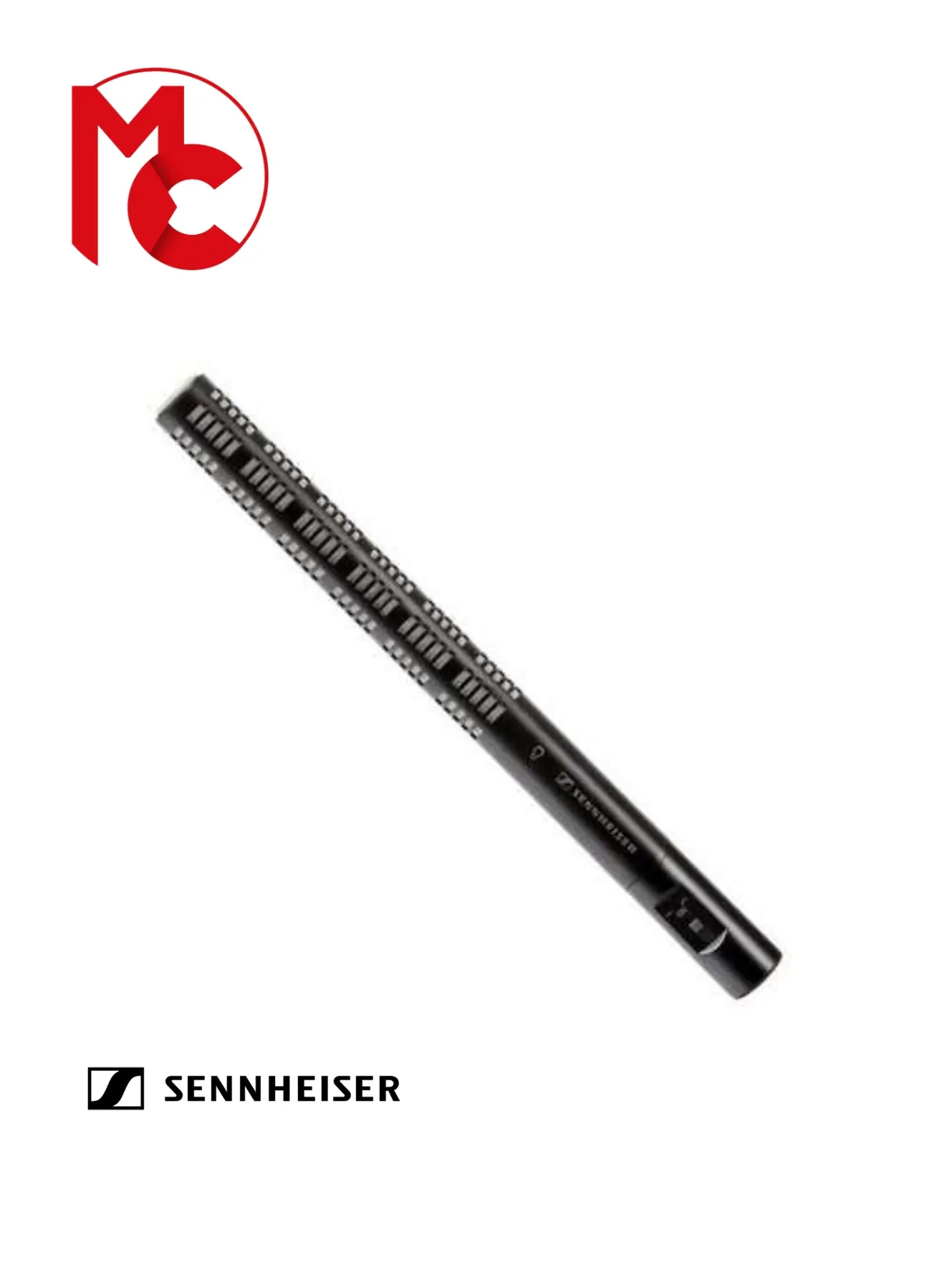

The ME 66 is a shotgun microphone head designed for use with the K6 and K6P powering modules. It is especially suitable for reporting, film and broadcast location applications and for picking up quiet signals in noisy or acoustically live environments as it discriminates against sound not emanating from the main pick-up direction. Matt black, anodised, scratch-resistant finish.
Technical Data
-
-
Dimensions
- Ø 22,5 x 221 mm
-
Frequency response (Microphone)
- 40 – 20000 Hz +- 2,5 dB
-
Sensitivity in free field, no load (1kHz)
- 50 mV/Pa +- 2,5 dB
-
Nominal impedance
- 200 Ω (K6)
-
Min. terminating impedance
- 1000 Ω (K6)
-
Equivalent noise level
- 10 dB
-
Equivalent noise level weighted as per CCIR
- 21 dB
-
Maximum sound pressure level (passive)
- 125 dB / 1 kHz (K = 1%)
-
